BIG BRAKES KIT

V 6 GT ( D500/501/502 )



MP3721

KIT DEVOTED TO COMPETITION

* Replacement the front disc diameter 259 , thickness 20 mm with 2 special discs
Brembo diameter 300 mm , thickness 24 mm , 2 steel shims making possible the fitting up of your original brackets, a set of MINTEX Racing brake pads , 2 "competition" flexible hoses et 1 literof very high temperature Motul brake fluid. The whole kit highly improves the brakings power and life. * Fitting up only with rims 16 *

(KIT font) selling and up fitting

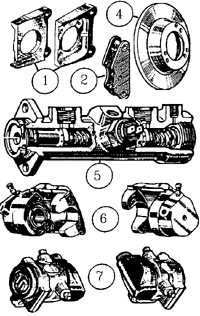

BIG BRAKES FITTING UP

DESIGNATION

Rep

PART NUMBER

Aluminium matching shim Front bracket ( the pair)R16

1

MP3801

Steel matching shim Rear bracket
(the pair)

2

MP3802

Brackets steel matching shim R16 Bracket Ø48 rear fitted up

.

MP3817

Disc to modify
Ø254 thickness 12mm

4

MP2704

Master cylinder diam. 22mm

5

MP3303

Front bracket Ø 48mm left

6

MP3304

Front bracket Ø 48mm right

6

MP3305

Rear bracket Ø 45mm left

7

MP3401

Rear bracket Ø 45mm right

7

MP3402

COMPETITION FLEXIBLE HOSES

Set of competition flexibles
hosesteflon tube and stainless steel plait
improved braking
no dilatation
trussed pedal
resistant to wear
and shocks

TYPE

Nb hoses

PART NUMBER

A 110 - R8G original brakes

4

MP3810

A110 S-SC-SX big brakes &original

4

MP3803

A310/4

4

MP3809

A310/6 (1976 à 6/80)

4

MP3804

A310/6 (6/80...)

4

MP3805

V6GT

4

MP3807

A 610

4

MP3813

R 5 ALPINE

4

MP3812

R 5 ALPINE TURBO

6

MP3814

R 5 TURBO 1 & 2

4

MP3808

R5 GT TURBO

4

MP3815

R12 GORDINI

5

MP3806

SPYDER

8

MP3816

HYDRAULIC HAND BRAKE


Feed hose length 1.80m Outgoing hose length 1.20m

A 110

Complete hydraulic hand brake delivered with competition flexible hoses

MP3811

HAND BRAKE CONTROL


A 110 (except VD VA) - R8G

Control kit

MP1721

Visa
