COOLING SYSTEM

AIR AIR EXCHANGER V6 TURBO D501

VERY HIGH PERFORMANCE AIR AIR EXCHANGER

MP0940

Very high airflow (suppress the counter-pressure)
To upgrade engines from200 to 300 HP
It makes it possible to improve the original turbo pressure
or to replace it by a more powerful turbo
and also to prepare the injection housing.

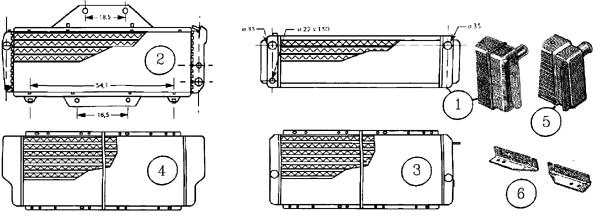

RADIATORS

The large water capacity improves the cooling

TYPE

DESIGNATION

Rep

PART NUMBER

A 110

Radiator
Manifolds : 180x70 - 180x70
Copper core sizes 595x180x70

1

MP0907

A 110

Pair of brackets

6

MP0938

A 310/4 1600 SC/SI

Radiator
Manifolds : 180x61 - 180x61
Copper core sizes 595x180x70

5

MP0941

A 310/6

Radiator
Manifolds : 240x50 - 240x50
Copper core sizes 705x225x35

2

MP0908

ALPINE V 6 TURBO

Radiator
Manifolds : 290x50 - 290x50
Copper core sizes 630x276x35

3

MP0909

V6 EUROPA CUP
D500 / 501 / 502 / 503
with upgraded engine or replaced
by a more powerful engine

Competition radiator
Copper core sizes 630x280x65
Manifolds 290x65

4

MP0930

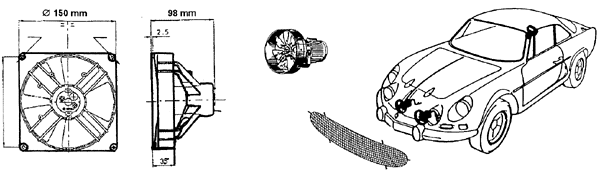

VENTILATEUR

VERY HIGH PERFORMANCE MODERN FAN MP0935

Ø 15cm Weight 500g long life potential, very quick fitting up, delivered with fastenings

A 110

Lower air intake screen

60 00 000 537

MP4328

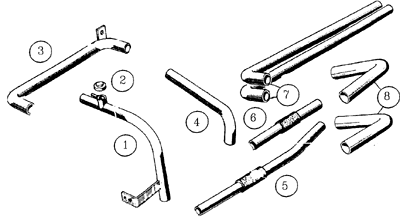

BRASS TUBES A110 1300

DESIGNATION

Original part number

Rep

PART NUMBER

Filling tube

60 00 000 588

1

MP0912

Filler cap

08 53 064 700

2

MP0704

Linking U-tube

60 00 000 595

3

MP0913

Linking L-tube

60 00 000 594

4

MP0914

Long straight linking tube

60 00 000 590

5

MP0915

Short straight linking tube

60 00 000 593

6

MP0916

Linking tube in beam

60 00 000 592

7

MP0917

front radiator elbow 90°

60 00 000 215

8

MP0918

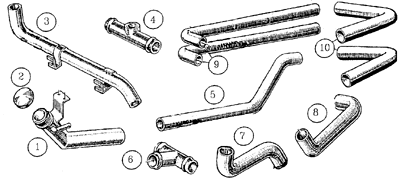

GRASS TUBES A110 1600

DESIGNATION

Original part number

Rep

REFERENCE

Filling tube

60 00 001 371

1

MP0919

Filler cap

60 00 001 375

2

MP0920

Linking tube

60 00 001 368

3

MP0921

Linking T-tube

60 00 001 367

4

MP0922

Linking S-tube

60 00 001 369

5

MP0923

T-coupling

60 00 001 370

6

MP0924

Linking S-tube

60 00 001 372

7

MP0925

Tube

60 00 001 373

8

MP0926

Linking tube in beam

60 00 000 592

9

MP0917

Front radiator elbow 90°

60 00 000 215

10

MP0918

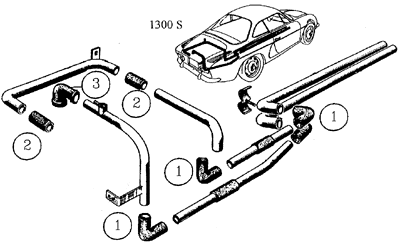

FLEXIBLE HOSES AND ELBOWS 1300 S

DESIGNATION

Rep

PART NUMBER

Coude 90°

1

MP0936

Straight hose

2

MP0937

Bent hose 90° for water pump outlet

3

MP0939

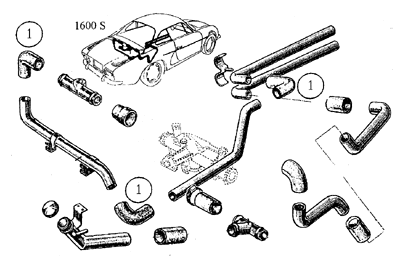

FLEXIBLE HOSES AND ELBOWS 1600 S

Elbow 90°

1

MP0936

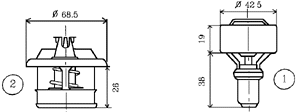

THERMOSTATS

TYPE

Temperature

Rep

PART NUMBER

R5A - R8G - R12 GORDINI - A 110

75 °

1

MP0702

R5A - R8G - R12 GORDINI - A 110

83 °

1

MP0707

A 310 V6

88 °

2

MP0703

A 310 V6

83 °

2

MP0708

R5 TURBO 2 - R5 ALPINE

86°

1

MP0709

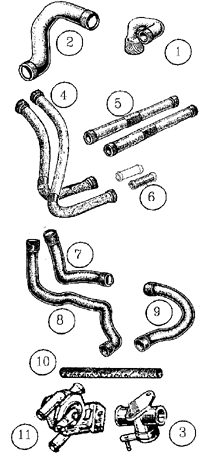

VALVES AND FLEXIBLE HOSES

TYPE

DESIGNATION

Rep

PART NUMBER

R8 (1130)
1st model

Radiator upper hose, small Ø 1st fitting up

1

MP0468

R8 - R8G
A 110

Radiator upper hose , 2nd fitting up, Ø45 after 67

1

MP0414

R8 (1130)
1st model

Radiator lower hose
1st fitting up

2

MP0469

R8 - R8G
A 110

Radiator lower hose, 2nd fitting up Ø34

2

MP0415

R8 - R8 G
A 110 1100 et 1300

Set of 2 bent heating hoses from water pump outlet to heating, length 75cm

4

MP0430

R8 - R8G

Straight hose to heating radiator (one part)
part number 7700501034

5

MP0470

R8 - R8G

Plastic coupling for straight hose (one part)

6

MP0471

R8 - R8G

Hose from water outlet to water pump

7

MP0472

R8 - R8G

Hose from valve intake to heating radiator

8

MP0473

R8 - R8G

Intake hose to heating radiator

9

MP0474

R8 - A 110 1100 - 1300 - V85

Straight hose from radiator outlet to expansion tank lenght 29cm Part Nb7700501028

10

MP0475

R8 - A 110

Heating valve

3

MP0431

A 310 / 6

Heating valve

11

MP0455

Visa
