SILENTBLOCKS

MODEL

DESCRIPTION

N

PART NUMBER

R8 - A 110

Upper front suspension arm

1

MP2001

R8 - A 110

Lower front suspension arm

2

MP2002

R8 - A 110

Front suspension arm stop

3

MP2003

R8 - A 110

Rear and right rod

8

MP2005

R8 - A 110

Rod

9

MP2006

R8 - A 110

Upper suspension arm pin

24

MP2026

R8 - A 110

Lower suspension arm pin

25

MP2027

R8 - R8 G - A 110

Fixture hexagon for rear rod (France version)

4

MP2034

A 310 / 4 - A 310 / 6 - R12 - R17

Front upper arm 27

5

MP2012

A 310 / 4 - A 310 / 6

Rear upper arm 28

6

MP2013

A 310 / 4 - A 310 / 6

Rear hub seat 28

6

MP2013

A 310 / 4 - A 310 / 6 - R12 - R17

Rear arm 32, front arm and rear lower arm

7

MP2014

A 310 - R12G

Brake reaction rod

17

MP2017

A 310 / 4 - A310 V6

Brake reaction rod rubber

18

MP2018

A 310 4 cyl.

Orig. absorber bottom end silent block

27

MP2028

R12 / R17

Front crossmember bracket 52

22

MP2024

R12 / R17

Rear suspension arm silent block

23

MP2025

D 500 - 501 - 502

Rod silent block (1 part)

19

MP2021

D 500 - 501 - 502

Complete brake reaction rod

20

MP2022

V6 GT (D500 D502)
A610 (D503)

Upper and lower rear suspension arm silentblock (one part)

10

MP2225

V6 GT (D500 D502)
A610 (D503)

Rear hub seat silentblock

6

MP2013

V6 GT (D500 D502)
A610 (D503)

Front upper suspension arm silentblock

11

MP2038

V6 GT (D500 D502)
A610 (D503)

Front (front side) lower suspension arm silentblock

12

MP2039

V6 GT (D500 D502)
A610 (D503)

Front (back side) lower suspension arm silentblock

13

MP2040

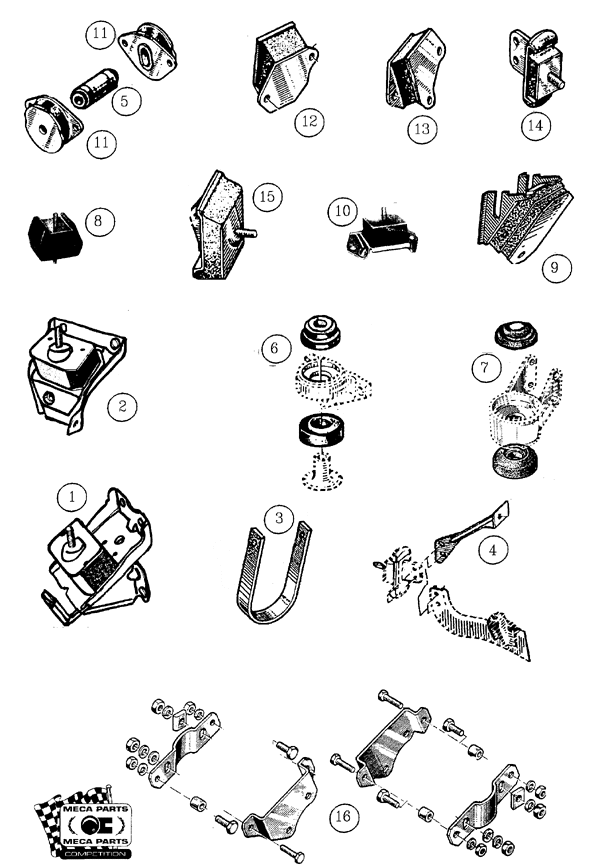

MODEL

DESCRIPTION

N

PART NUMBER

R8 - A 110

Gearbox rear bracket

11

MP2008

R8 - A110

Gearbox centering pin

5

MP2030

R8 - A 110

Gearbox bracket

12

MP2009

R8 - A 110

Gearbox right bracket

13

MP2010

R8 - A 110

Engine bracket

14

MP2011

A 310/R12G/1100%
A 110 SC/SX

engine bracket

15

MP2015

R8 - A 110

Wide strap, length : 39.5, width : 5 (1 part)

3

MP2035

A110 / GR4

Short wide strap (dropped car)

3

MP2037

R8 - A 110 /1300

Booster rod for block 1300G

4

MP2036

A310 A110SC R12 / R17

+ right engine bracket

10

MP2019

A 310 / R12G / 1100%
A 110 SC / SX

Right engine bracket

15

MP2016

A 110 1100% S

Set for engine bracket

6

MP2031

A 110 1100% SC/SI - A 310/4

Set for gearbox bracket

6

MP2031

R12 / R17

and right gearbox bracket

8

MP2023

A 310 6 cyl.

or right engine bracket

9

MP2029

R5 TURBO

Right engine bracket

1

MP2032

R5 TURBO

engine bracket

2

MP2033

R8 G Groupe 2
A 110 groupe 4

Complete set for stiff Racing bracket

16

MP4103
