CARBURATION

SETS OF CARBURATOR RINGS

Sets of rings containing all gaskets,
all o-rings, squarecross section o-rings, the accelerating pump
membrane, the high precision diamond needles


DESIGNATION

PART NUMBER

Set for 2 carburators Weber 40 DCOE

MP1001

Set for 2 carburators Weber 45 DCOE

MP1002

Set for 1 carburator Weber 48 DCOE 98.99

MP1003

Set for 1 carburator Solex 34TBIA & 35CEEI

MP1010

Set for 1 carburator Weber 32 DIR 4

MP1004

MECHANICAL PETROL PUMPS

DESIGNATION

PART NUMBER

R8 - A 110 (except GORDINI)

MP1005

R8 GORDINI ( R 1135 ) - A 110

MP1015

R12G A 110 & A 310 / 4.1100% cm3

MP1006

A310 / 6 CYL

MP1011


ELECTRICAL FUEL PUMPS

TYPE

DESIGNATION

PART NUMBER

A310 / 4 injection

BOSCH 0 580 363 002 1100% Injection

MP1012

R5 TURBO 1 & 2

Pump submerged in the tank

MP1022

ELECTRONIC FUEL PUMPS

DESIGNATION

PART NUMBER

Petrol pump to fit up in the engine partition or in parallel to the mechanical pump
Weight 750g Outflow120 l/h Pressure 0.10 bar Voltage 12 v, ø Tube 8mm
Sucking pump to fit up horizontally.
Be careful that the 2 small arrows are directed upwards.
Respect the polarity.

MP1007

Petrol pump to fit up backward next to the petrol tank.
Weight 750g Outflow120 l/h Pressure 0.25 bar Voltage 12 v, ø Tube 8mm
Delivering pump to fit up like
the sucking pump

MP1008

Special tourer high capacity petrol pump
Weight 750g Outflow120 l/h Pressure 0.30 bar Voltage 12 v, ø Tube 8mm
Delivering pump to fit up like
the sucking pump

MP1009

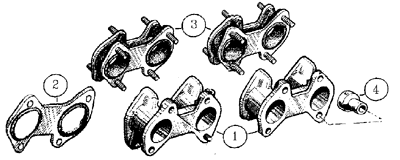

ALUMINIUM PIPES

TYPE

ALUMINIUM PIPES

Rep

PART NUMBER

A 110 - 1100% 2Weber 45 DCOE

1st fitting without flexible flangesALPINE delivered with o-rings and attaching hardware

1

MP0933

0

2nd fitting with flexible flanges MP1017

1

MP0906

A 110 - V85 / R8 / R10 / R12 1Weber 40 ou 45 DCOE

Delivered with o-rings and attaching hardware

1

MP0932

R5 ALPINE / A110 Cylinder head R5 ALPINE 2 Weber 40 DCOE

One-piece pipe with 5° inclinated ducts, length 33,5 cm, possibility of machining for 45 DCOE delivered with o-rings and attaching hardware

1

MP0910

A 110 - R8 G 1300/1100%

Silent block between the 2 intake pipes and the 2 Weber 40DCOE

4

MP1016
set of 8 parts

A 110 - R8 G 1300/1100%

Spacer for carburator DCOE45

2

MP1023

A 110 - R 8G 1100%

Flexible flange between aluminium pipes and the 2 Weber 45DCOE

3

MP1017

ACCELERATOR CONTROL

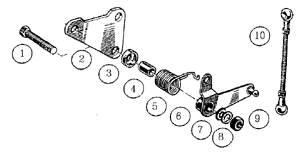

A 110 - R 8 G with cylinder head R5 Alpine and 2 Weber 40/45 DCOE

The kit (1) to (10) MP1013
Bracket (2)
MP1019
Spring (5) MP1020
Bellcrank (6) MP1021

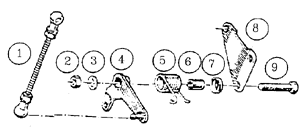

A 110 - 1100%S - A 310/4 Weber 45DCOE

The kit 1 to 9
MP1014

Engine 1300 G with engine conversion R5 Alpine et 2 Weber 40/45DCOE


Bichromated and zinc coated bracket fitted on the gearbox for the accelerator cable subway

MP1018

A 110

Accelerator pedal pull-back spring

MP1024
